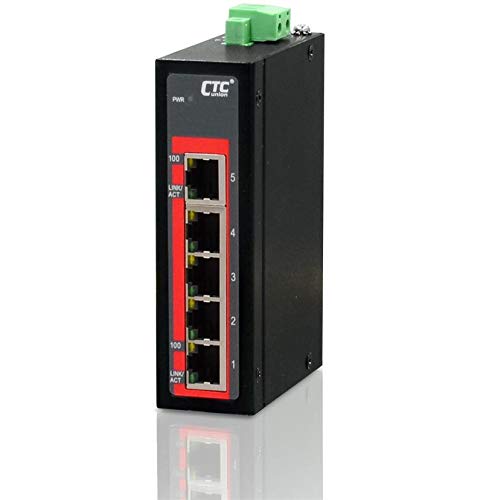

IFS-500C 5-Port Industrial Ethernet Switch | 10/100Base-TX Fast Network Switch | DIN Rail Mount | Compact Design for Factory Automation & Harsh Environments

$44

$80

Safe 45%

IFS-500C 5-Port Industrial Ethernet Switch | 10/100Base-TX Fast Network Switch | DIN Rail Mount | Compact Design for Factory Automation & Harsh Environments

$44

$80

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

15 people viewing this product right now!

SKU: 21103152

Guranteed safe checkout

Description

This model is a compact sized, non-managed industrial grade Fast Ethernet switch with 5 10/100Base-TX ports that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, switch is designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models(-10 to 60°C) fulfill the special needs of industrial automation applications. All Industrial Ethernet switches include a DIN rail mounting kit and a small power jack adapter for optional external AC adapter. Features Wide range input power 12/24/48VDC (9.6~60VDC), or AC24V (18~36VAC) IP30 rugged metal housing and Fanless Compact size for easy installation Operating temperature -10 ~ 60°C Provides broadcast storm protection Very low power consumption Supports flow control CE, FCC,and EN50121-4 for railway traffic certification Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified 5-Port 10/100Base-T(X)

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet, IEEE 802.3x Flow Control and Back Pressure Switch ArchitectureBack-plane (Switching Fabric) 1.0 GbpsFull wire-speed Data Processing Store and Forward Transfer Rate 14,880pps for Ethernet port, 148,800pps for Fast Ethernet port Flow Control IEEE 802.3x flow control, back pressure flow control Provides Broadcast Storm Protection

MAC Address Table 1K Packet Buffer Size 448Kbits Network Connectors 5x RJ-45 RJ-45 Port Auto MDI/MDI-X function, 10/100Base-TX auto negotiation speed, Full/Half duplex Network Cable 10Base-T 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m), 100Base-TX 2-pair UTP/STP Cat. 5 cableEIA/TIA-568 100-ohm (100m) Protocol CSMA/CD LED(Per unit) Power (Green), RJ-45 (Per port) Link/Active (Green), Speed 100 ( Yellow)

Reverse Polarity Protection For DC input power protection Overload Current Protection Present Power Supply DC 12/24/48V (9.6~60VDC) or AC 24V (18~36VAC) input power (Removable Terminal Block) Power Consumption <2W Removable Terminal Block Provides for input power (2 Pin) Operating Temperature -10 ~ 60°C

Operating Humidity 5% to 95% (Non-condensing) Storage Temperature -40 ~ 85°C Housing Rugged Metal, IP30 Protection and Fanless Dimensions 70 x 30 x 103 mm (D x W x H) Weight 220g Installation DIN Rail mounting or wall mounting (optional) MTBF 500,000 Hours ( M I L- H D B K -217 ) Warranty 5 years

Certifications EMC/EMS CE EMI FCC Part 15 Subpart B Class A, CE EN55022 Class A Railway Traffic EN50121- 4 Immunity EN61000-6-2 Emission EN61000-6-4 EMS EN61000-4-2 to EN61000-4-8 (PFMF, Magnetic Field) Field Strength 300A/m, Criteria A Shock IEC60068-2-27 Freefall IEC60068-2-32 Vibration IEC60068-2-6
